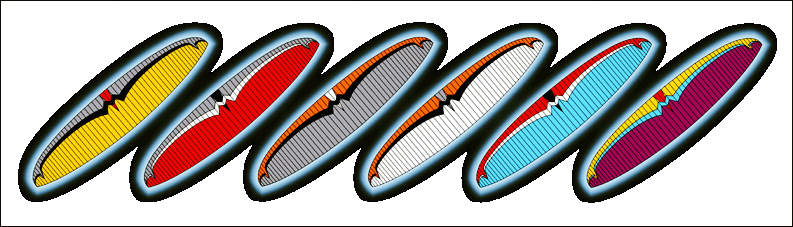

ENVY



Technical description:

Performance, agility, stability and high climbing performance were our goals when designing this performance glider.  The Envy was made for experienced cross country pilots looking for relaxed flying

 The slim elliptical form of the canopy has an aspect ratio of 5.71. The Envy has 56 cells with full diagonals. Lines are attached to every third rib and this construction allows the lines to be reduced to two tiers.

The glider is undemanding and resistant to collapse even in rough air. It features excellent stability throughout the full weight and speed range. The moderate brake pressure allows pleasant turns with good climbing performance and increases progressively toward the end of its travel to offer safety reserves.  The canopy is moderately damped in all axes and offers flexibility and agility in turns. It does not overshoot or sit back.

In an induced collapse the glider does not rotate quickly and will usually reopen within 60 degrees. The opening is smooth and predictable. Easy launch and landing characteristics are a must.

The use of high-quality materials and constant quality control during our own MAC PARA manufacturing process together with consistent development work produces high quality products. We are proud of them.




Used materials:

  • Top: Skytex 9017, Coating E77A and E38A 40 g/m2
  • Bottom: Skytex 9017 Coating E38A 40 g/m2
  • Main ribs,V tapes: Skytex 9017 Coating E29A 40 g/m2
  • Minor ribs: Skytex 9017 Coating E38A 40 g/m2
  • Upper lines: Edelrid Aramid/Kevlar 6843 – 60 kg, - 80 kg
  • Main lines: Aramid/Kevlar 7643-230 kg,-190 kg,-140 kg,-80kg






PERFORMANCE ENVY 23 ENVY 25 ENVY 27 ENVY 30
Zoom flat [%] 92 96 100 104,5
Area flat [m2] 23,3 25,37 27,53 30,06
Area projected [m2] 20,87 22,73 24,66 26,93
Span flat [m] 11,54 12,04 12,54 13,1
Aspect ratio flat 5,71 5,71 5,71 5.,71
Root chord [m] 2,58 2,69 2,8 2,93
Cells 56 56 56 56
Weight [kg] 5.8 6 6,3 6,6
Weight range [kg]* 65-80 73-93 85-105 100-130
Min. speed [km/h] 23-25 23-25 23-25 23-25
Max. speed [km/h] 36-38 36-38 36-38 36-38
Top speed [km/h] (accelerator) 50-53 50-53 50-53 50-53
Gliding ratio 8,7 8,7 8,7 8,7
Min. sink rate [m/s] 1,1 1,1 1,1 1,1
Certification   DHV 2 DHV 2
