MUSE II

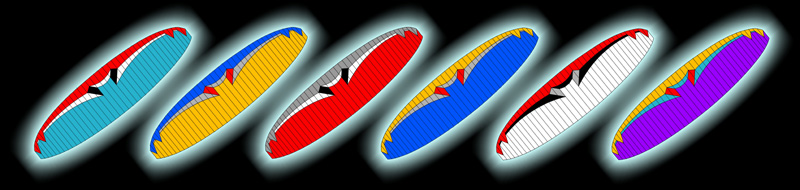

Bottom color is white on all designs.

Technical description:

The Muse 2 has everything that you need to discover a fantastic dimension of flying. It was designed to be a super-safe glider with finely tuned handling for pilots who need DHV 1 safety and who want to enjoy relaxed flying. The Muse 2 is the ideal glider for beginners to the sport and maybe also those more experienced pilots looking for the easy life.

     The Muse 2 has 39 cells and a nice elliptically shaped canopy with an aspect ratio of 4.65. The classic construction with diagonal V-tapes and a system of load-bearing tapes gives canopy stability and helps to keep a clean profile. Line configuration remains the same as the Muse 1 with an additional E-line. Intensive testing on different curvatures of canopy resulted in a well balanced glider with simple take-off characteristics and easy behaviour during extreme manoeuvres. The canopy is very resistant to collapse. In an induced collapse the glider gives a rotation of 30 degrees. The opening is smooth and fast. The Muse 2 has lively handling but the canopy is well damped in all axes. The light brake pressure allows pleasant turns during long thermal flights, but increases progressively towards the end to offer a good safety margin. The Muse 2 comes with a 4 point riser system and is equipped with split A risers for easy big-ears.

     The use of high-quality materials and constant quality control during our own MAC PARA manufacturing process together with consistent development work produces high quality products.

     If you already feel that para-motoring is going to be a large part of your life, then you will enjoy assistance from easy launch behaviour, sporty handling and high performance.

Used materials:

Top: Skytex 9017, Coating E77A and E38A 40 g/m2
Bottom: Skytex 9017 Coating E38A 40 g/m2
Main ribs,V tapes: Skytex 9017 Coating E29A 40 g/m2
Minor ribs: Skytex 9017 Coating E38A 40 g/m2
Upper lines: Edelrid Aramid/Kevlar 6843 – 80 kg
Main lines: Edelrid Aramid/Kevlar 6843- 240 kg, - 200 kg, - 160 kg

Intermediate

MUSE 2-23

MUSE 2-25

MUSE 2-28

MUSE 2-30

MUSE 2-33

Zoom [%]

0,893

0,945

1,00

1,035

1,082

Area flat. [m²]

22,85

25,74

28,66

30,70

33,55

Area projected [m²]

19,88

22,26

24,93

26,71

29,18

Span flat [m]

10,31

10,91

11,55

11,95

12,50

Aspect ratio flat.

4,65

4,65

4,65

4,65

4,66

Root chord [m]

2,70

2,85

3,02

3,12

3,27

Cells

39

39

39

39

39

Weight [kg]

5,20

5,45

5,95

6,45

6,95

Weight range [kg]*

60-80

70-90

85-110

100-130

115-145

Min. speed [km/h]

22-24

22-24

22-24

22-24

22-24

Max. speed [km/h]

35-37

35-37

35-37

35-37

35-37

Top speed [km/h] (accelerator)

45-46

45-46

45-46

45-46

45-46

Gliding ratio

7,8

7,8

7,8

7,8

7,8

Min. sink rate [m/s]

1,10-1,20

1,10-1,20

1,10-1,20

1,10-1,20

1,10-1,20

*pilot equipped
-.-
DHV 1

Back to gliders

Intermediate	MUSE 2-23	MUSE 2-25	MUSE 2-28	MUSE 2-30	MUSE 2-33
Zoom [%]	0,893	0,945	1,00	1,035	1,082
Area flat. [m²]	22,85	25,74	28,66	30,70	33,55
Area projected [m²]	19,88	22,26	24,93	26,71	29,18
Span flat [m]	10,31	10,91	11,55	11,95	12,50
Aspect ratio flat.	4,65	4,65	4,65	4,65	4,66
Root chord [m]	2,70	2,85	3,02	3,12	3,27
Cells	39	39	39	39	39
Weight [kg]	5,20	5,45	5,95	6,45	6,95
Weight range [kg]*	60-80	70-90	85-110	100-130	115-145
Min. speed [km/h]	22-24	22-24	22-24	22-24	22-24
Max. speed [km/h]	35-37	35-37	35-37	35-37	35-37
Top speed [km/h] (accelerator)	45-46	45-46	45-46	45-46	45-46
Gliding ratio	7,8	7,8	7,8	7,8	7,8
Min. sink rate [m/s]	1,10-1,20	1,10-1,20	1,10-1,20	1,10-1,20	1,10-1,20
*pilot equipped	-.-	DHV 1
